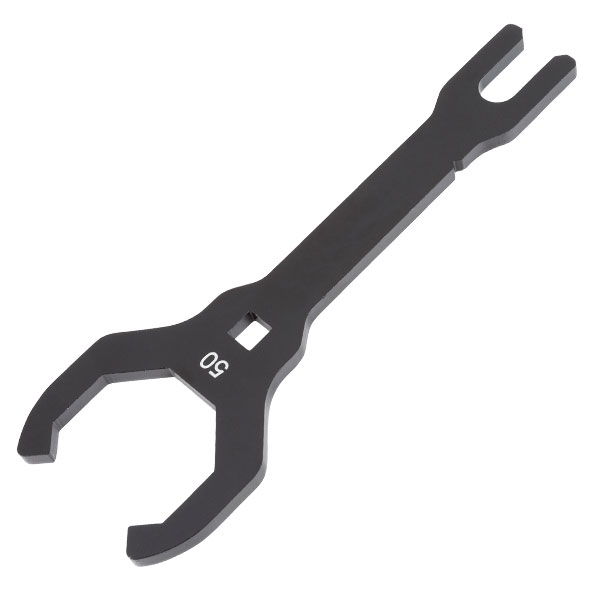

P300x FORK TOP CAP WRENCH
SPECIFICATIONS:

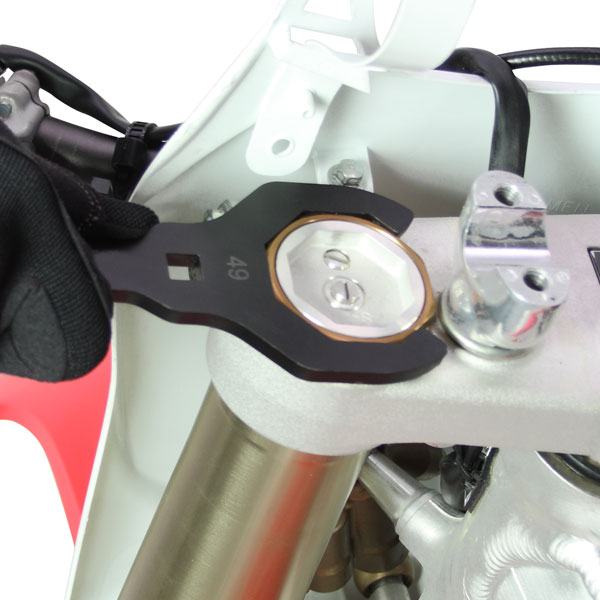

- Wrench for removing front fork cap.
- 2 wrench sizes available, 49 mm for KYB and 50 mm for
SHOWA and 50 mm KTM WP front fork.
- Open wrench design for easy operation in small spaces.
- Opposite end of the wrench is rod stopper to hold piston rod when removing piston inner cartridge.
- Socket hole available for torque wrench.( Socket size is 9.5 sq = 3 / 8 inch )
- Made of durable steel, electro coating finish.
| UN-P3004 | UN-P3005 | ||
| |
|
||
| Material | Steel | Material | Steel |
| Wrench Size | KYB(49mm) | Wrench Size | SHOWA(50mm) |
| Length | 215mm | Length | 215mm |
| Weight | 239 g - 251 g | Weight | 239 g - 251 g |
| UN-P3003 | |
 |
|
| Material | Steel |
| Wrench Size | WP（50mm) |
| Length | 215mm |
| Weight | 239 g - 251 g |
| Bike | Year | Front Frok | Part number |
| CRF450R | 09-14 | KYB(49mm) | UN-P3004 |
| YZ125/250 | 06-22 | ||
| YZ250F | 06-22 | ||
| YZ450F | 06-22 | ||
| YZ125X | 17-22 | ||
| YZ250X | 16-22 | ||
| YZ250FX | 15-22 | ||
| YZ450FX | 16-22 | ||
| WR250F | 15-22 | ||
| WR450F | 13-22 | ||
| KX250 | 20-22 | ||
| KX250X | 21-22 | ||
| KX450F | 06-14 | ||
| RMZ250 | 16-22 | ||
| EC250 | 18-20 | ||
| EC300 | 18-20 | ||
| XC250 | 18-20 | ||
| XC300 | 18-20 | ||
| ENDURO GP250 | 18-20 | ||
| ENDURO GP300 | 18-20 | ||
| 125SC FACTORY | 19-20 | ||
| 250SC FACTORY | 19-20 | ||
| 300SC FACTORY | 19-20 | ||
| 250SCF FACTORY | 19-20 | ||
| 300SCF FACTORY | 19-20 | ||
| 450SCF FACTORY | 19-20 | ||
| 500SCF FACTORY | 19-20 | ||
| 250SE FACTORY | 19-22 | ||
| 300SE FACTORY | 19-22 | ||
| 250SEF FACTORY | 19-22 | ||
| 300SEF FACTORY | 19-22 | ||
| 450SEF FACTORY | 19-22 | ||
| 500SEF FACTORY | 19-20 | ||
| CRF250R | 04-23 | SHOWA(50mm) | UN-P3005 |
| CRF450R | 04-08 | ||
| 17-22 | |||
| CRF250RX | 19-23 | ||
| CRF450RX | 17-22 | ||
| CRF250X | 06-17 | ||
| CRF450X | 05-22 | ||
| CRF450L | 19-20 | ||
| CRF450RL | 21-22 | ||
| KX250F | 06-18 | ||
| KX250 | 19 | ||
| KX450F | 15-18 | ||
| KX450 | 19-22 | ||
| KX450X | 21-22 | ||
| RM125 | 06-08 | ||
| RM250 | 07-08 | ||
| RMZ250 | 07-15 | ||
| RMZ450 | 05-22 | ||
| RMX450Z | 10-17 | ||
| DRZ400SM | 05-17 | ||
| 125SX | 07-23 | WP(50mm) | UN-P3003 |
| 150SX | 09-22 | ||
| 250SX | 07-23 | ||
| 250SX-F | 07-23 | ||
| 350SX-F | 11-23 | ||
| 450SX-F | 07-23 | ||
| 150/250/300EXC | 17-23 | ||
| 250-500EXC-F | 17-23 | ||
| 125/250/300XC | 17-23 | ||
| 250-450XC-F | 17-23 | ||
| 125-300XC-W | 17-23 | ||
| FC250-450 | 17-23 | ||
| TC125/250 | 17-22 | ||
| FE250-501 | 17-23 | ||
| TE150-300 | 17-22 | ||
| FX350/450 | 17-23 | ||
| TX125/300 | 17-23 | ||
| MC125 | 21-23 | ||
| MC250 | 22-23 | ||
| MC250F | 21-23 | ||
| MC350F | 22-23 | ||
| MC450F | 21-23 | ||
| EX250 | 22-23 | ||
| EX250F | 21-23 | ||
| EX300 | 21-23 | ||
| EX350F | 21-23 | ||
| EX450F | 21-23 | ||
| EC250 | 21-23 | ||
| EC300 | 21-23 | ||
| EC250F | 21-23 | ||
| EC350F | 21-23 |
