P800x SNAP RING PLIER
SPECIFICATIONS:
- Pliers for C type snap rings. 4 different pliers available, internal and external, straight and bend head.

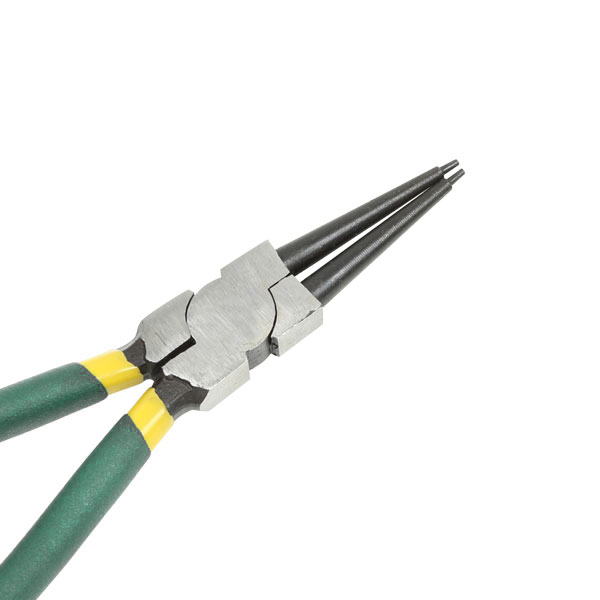

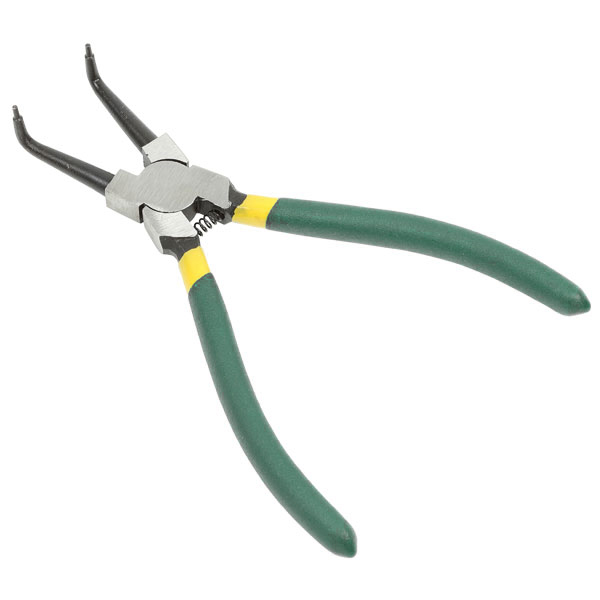

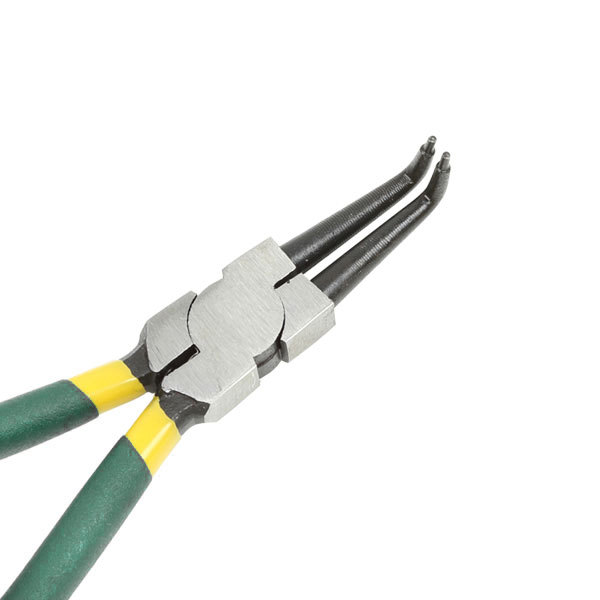

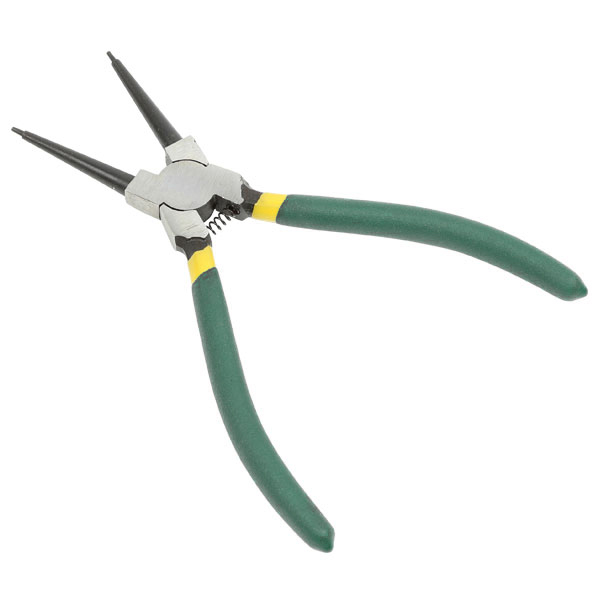

| P8001 Snap Ring Plier | P8002 Snap Ring Plier | ||
 |
 |
||
| Style | Internal | Style | Internal 90 degree |
| Head style | Straight | Head style | 90 degree |
| Tip diameter | 1.8mm | Tip diameter | 1.8mm |
| Open width | 32mm | Open width | 22mm |
| Head length | 44mm | Head length | 24mm |
| L head length | - | L head length | 18mm |
| Size | 185mm | Size | 158mm |
| Weight | 152gs | Weight | 151gs |

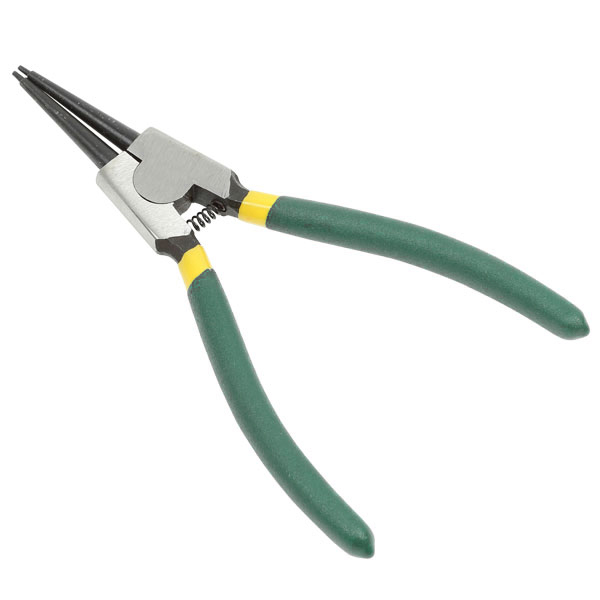

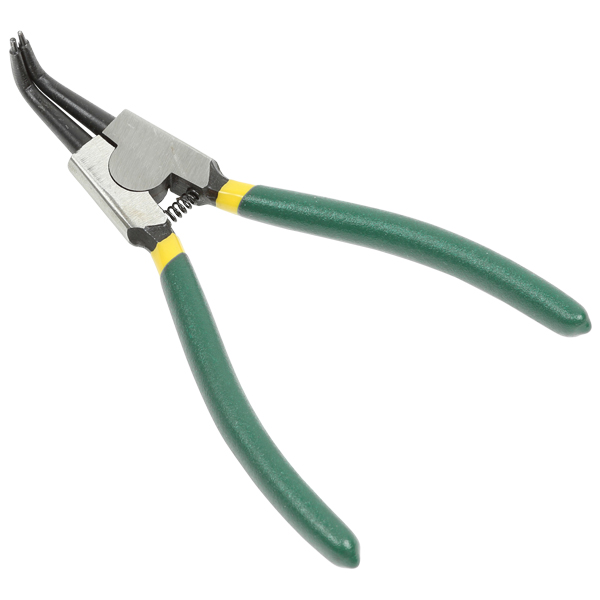

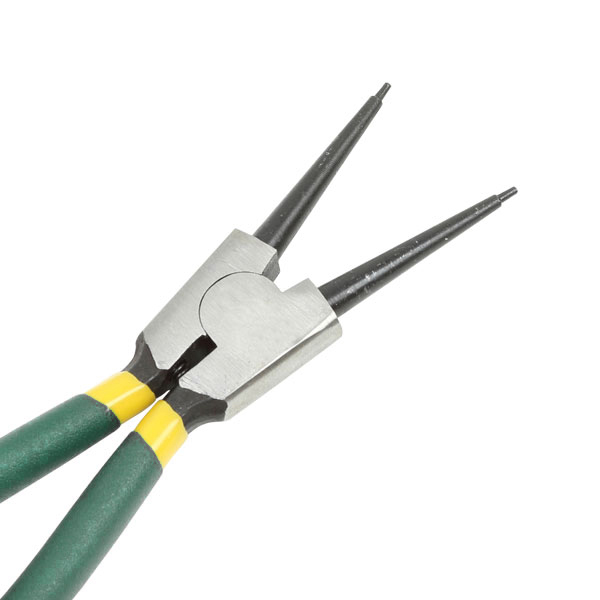

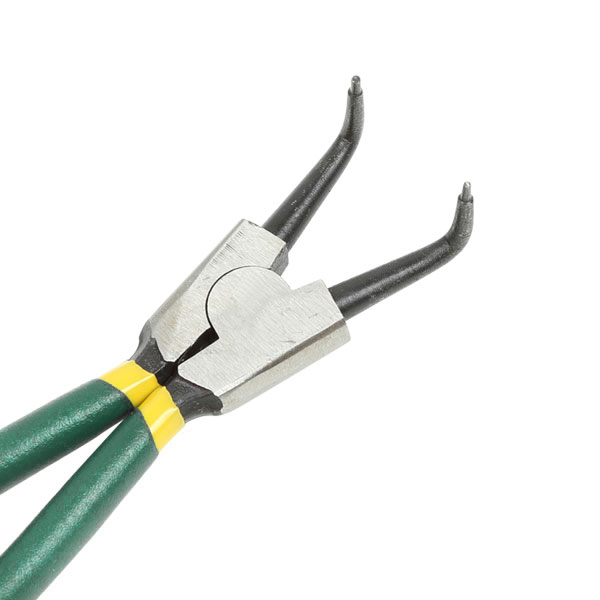

| P8003 Snap Ring Plier | P8004 Snap Ring Plier | ||
 |
 |
||
| Style | External | Style | External 90 degree |
| Head style | Straight | Head style | 90 degree |
| Tip diameter | 1.8mm | Tip diameter | 1.8mm |
| Open width | 30mm | Open width | 26mm |
| Head length | 44mm | Head length | 24mm |
| L head length | - | L head length | 18mm |
| Size | 165mm | Size | 165mm |
| Weight | 146gs | Weight | 145gs |
