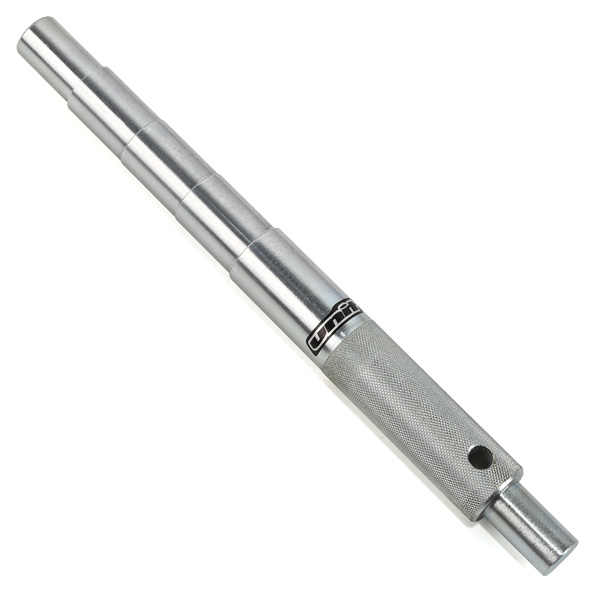

P3011 AXLE BRACKET SPINNER / HOLDER
SPECIFICATIONS:
- Tool to support to remove and install an axle bracket of an inverted front fork.
- Made of steel.
How to use

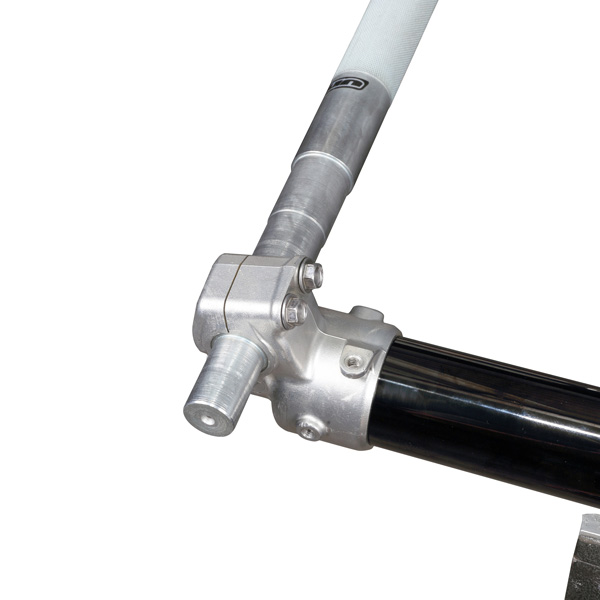

A front fork inner tube is securely fixed by UNIT PIPE CLAMP(UN-P3505),
insert the axle spinner into the shaft hole of the axle bracket and rotate it counterclockwise to disassemble.
Please unscrew lock-screws to lock the axle shaft on an axle bracket before disassembling if needed.
| P3011Axle Bracket Spinner / Holder | |
| |
|

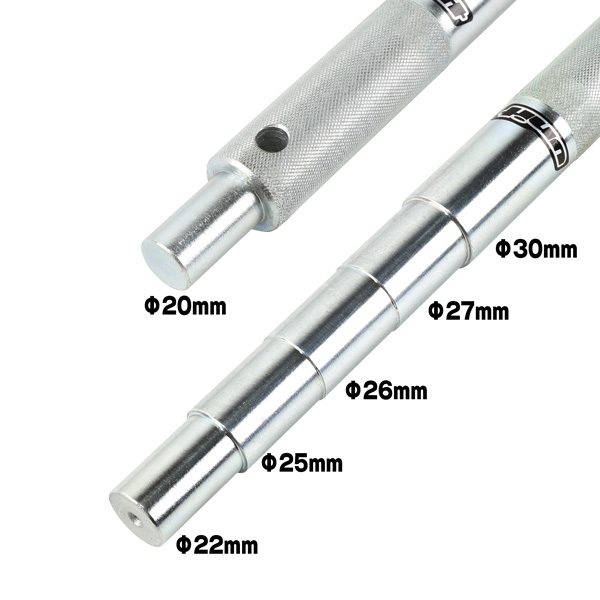

| Diameter range of the axle bracket hole | Φ 20 mm Φ 22 mm Φ 25 mm Φ 26 mm Φ 27 mm Φ 30 mm |
| Length | 320 mm |
| Weight | 1.4 kg |
