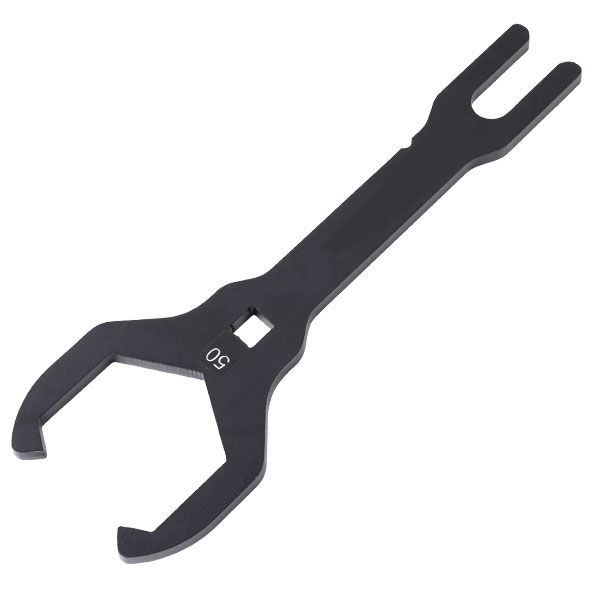

P300x FORK TOP CAP WRENCH
SPECIFICATIONS:

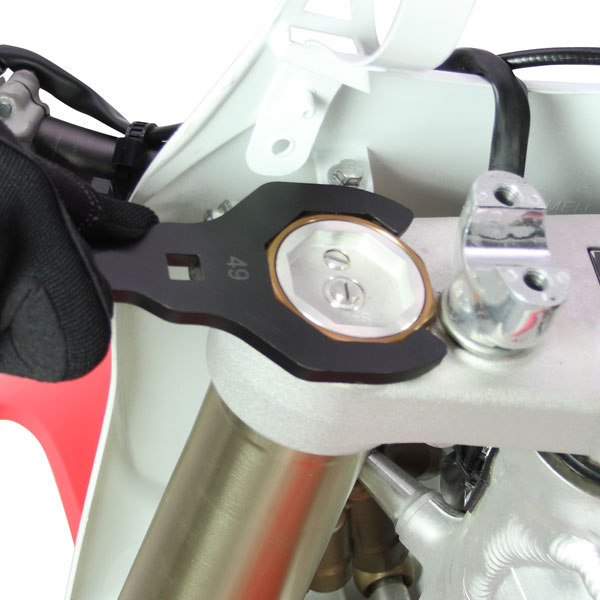

- Wrench for removing front fork cap.
- 2 wrench sizes available, 49 mm for KYB and 50 mm for
SHOWA and 50 mm KTM WP front fork.
- Open wrench design for easy operation in small spaces.
- Opposite end of the wrench is rod stopper to hold piston rod when removing piston inner cartridge.
- Socket hole available for torque wrench.( Socket size is 9.5 sq = 3 / 8 inch )
- Made of durable steel, electro coating finish.
| P3004 KYB | P3005 SHOWA | ||
| |
|
||
| Material | Steel | Material | Steel |
| Wrench Size | 49mm | Wrench Size | 50mm |
| Length | 215mm | Length | 215mm |
| Weight | 239 g - 251 g | Weight | 239 g - 251 g |
| P3003 WP | |
 |
|
| Material | Steel |
| Wrench Size | 50mm |
| Length | 215mm |
| Weight | 239 g - 251 g |
| Bike | Year | Part number | KTM | Year | Part number |
| CRF450R | 09-14 | P3004 KYB (49mm) |
125-150SX | 07-14 | P3003 WP (50mm) |
| YZ125/250 | 06-16 | 125-150SX (AIR) | 16 | ||
| YZ250F/450F | 06-16 | 250SX/SX-F | 07-14 | ||
| YZ250X | 16 | 250SX/SX-F (AIR) | 16 | ||
| YZ250FX | 15-16 | 350SX-F | 11-14 | ||
| KX450F | 06-14 | 350SX-F (AIR) | 16 | ||
| CRF250R | 04-16 | P3005 SHOWA (50mm) |
450SX-F | 07-14 | |
| CRF450R | 04-08 | 450SX-F (AIR) | 16 | ||
| CRF250X | 06-15 | 150XC | 10-13 | ||
| CRF450X | 05-15 | 250/300XC | 08-13 | ||
| KX250F | 06-15 | 250-450XC-F | 08-13 | ||
| KX450F | 15-16 | ||||
| RM125 | 06-08 | ||||
| RM250 | 07-08 | ||||
| RMZ250 | 07-15 | ||||
| RMZ450 | 05-16 | ||||
